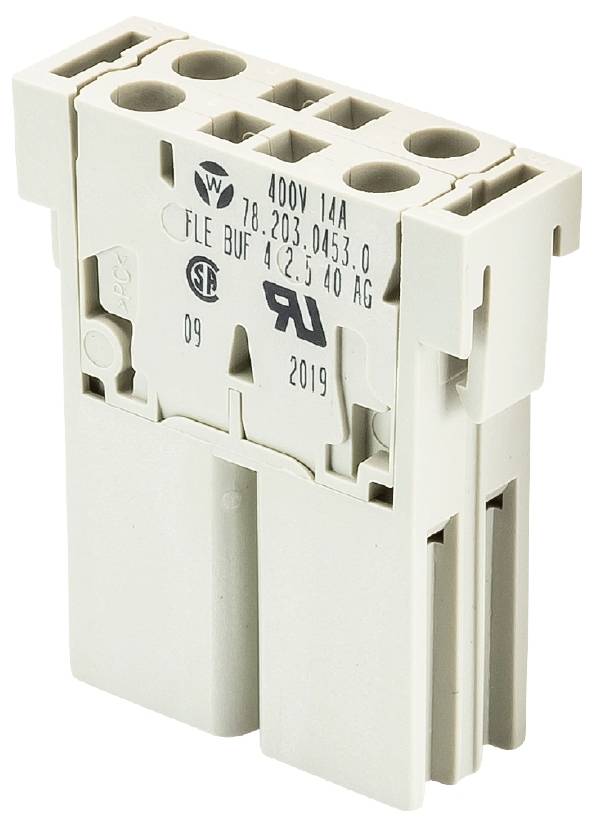

Wieland Electric 78.203.0453.0 Module inset Total number of pins 4 10 pc(s)
EAN:
Part number:
Item no:
Product type
Module inset
Connection
Spring-loaded connector
Number of pins
4
Total no. of pins
4
Test current
14 A
Number (Package size 10 pc(s))
Total (€ 8.07 / piece)
€ 80.66
plus VAT.
14-day return policy included
Technical specifications
- Product type
Module inset
- Number of pins
4
- Total no. of pins
4
- Connection
Spring-loaded connector
- Test current
14 A
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
11.4 mm
40.4 mm
TRUE
4
Bus
-40-120 °C
-40-120 °C
V0
6 kV
Spring clamp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
FALSE
14 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3275043 Wieland Electric 78.203.0453.0 Module inset Total number of pins 4 10 pc(s)
Description
Modular connector system
4-pin socket module
400 V/14A
Spring power connection
This text is machine translated.
4-pin socket module
400 V/14A
Spring power connection
This text is machine translated.
