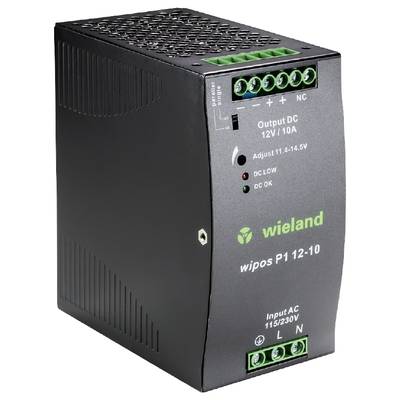

Wieland Electric 81.000.6142.0 SMPSU 12 V 10 A 120 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
14-day return policy included
Technical specifications
- Nominal input voltage
100 - 240 V/AC
- Product type
SMPSU
- Max. output current
10 A
- Output current (max.) - rounded
10 A
120 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
12 V
- No. of outputs
1 x
- Dim
(L x W x H) 123.6 x 63.2 x 123.6 mm
- Output voltage (max.)
14.5 V DC
- Output voltage (min.)
11.4 V DC
- Manufacturer part #
81.000.6142.0
- Content
1 pc(s)
- PSU features
Regulated
- Width
63.2 mm
- Height
123.6 mm
- Length
123.6 mm
IP20
- Type
WIPOS P1 12-10
63.2
123.6 mm
123.6 mm
TRUE
AC/DC
120 W
TRUE
Screw connection
TRUE
FALSE
TRUE
IP20
12-12 V
10 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272351 Wieland Electric 81.000.6142.0 SMPSU 12 V 10 A 120 W No. of outputs:1 x Content 1 pc(s)
Description
Wipos switched power supply
Output:12 V DC / 10A (adjustable from 11.4-14.5 V DC)
protected against permanent short circuits
INPUT 115 V AC / 230 V AC
210-370 V DC
single phase
W x H x D 63.2 × 123.6 × 123.6 mm
This text is machine translated.
Output:12 V DC / 10A (adjustable from 11.4-14.5 V DC)
protected against permanent short circuits
INPUT 115 V AC / 230 V AC
210-370 V DC
single phase
W x H x D 63.2 × 123.6 × 123.6 mm
This text is machine translated.
