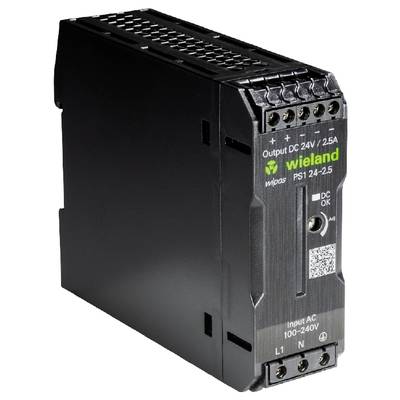

Wieland Electric 81.000.6520.0 SMPSU 24 V 2.5 A 60 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
SMPSU
- Min. input voltage
85 V AC
90 V DC
- Input voltage (max.)
264 V AC
350 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
60 W
- Output voltage (nominal)
24 V
- Dim
(W x H) 32 mm x 90 mm
- Manufacturer part #
81.000.6520.0
- Content
1 pc(s)
- Width
32 mm
- Height
90 mm
IP20
- Type
WIPOS PS1 24-2.5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272458 Wieland Electric 81.000.6520.0 SMPSU 24 V 2.5 A 60 W Content 1 pc(s)
Description
WiposPS1 switched-mode power supply
Output:24 V DC / 2.5 a (adjustable from 21.6-27.6 V DC)
protected against permanent short circuits
INPUT 85-264 V AC / 90-350 V DC
single phase
W x H x D 32 × 90 × 110 mm
This text is machine translated.
Output:24 V DC / 2.5 a (adjustable from 21.6-27.6 V DC)
protected against permanent short circuits
INPUT 85-264 V AC / 90-350 V DC
single phase
W x H x D 32 × 90 × 110 mm
This text is machine translated.
