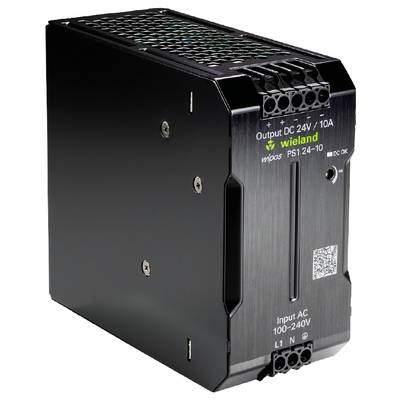

Wieland Electric 81.000.6540.0 SMPSU 24 V 10 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 318.49 / piece)
€ 318.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
SMPSU
- Min. input voltage
85 V AC
90 V DC
- Input voltage (max.)
264 V AC
350 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output voltage (nominal)
24 V
- Dim
(W x H) 60 mm x 125 mm
- Manufacturer part #
81.000.6540.0
- Content
1 pc(s)
- Width
60 mm
- Height
125 mm
IP20
- Type
WIPOS PS1 24-10
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272465 Wieland Electric 81.000.6540.0 SMPSU 24 V 10 A 240 W Content 1 pc(s)
Description
Wipos PS1 switching power supply
Output:24 V DC / 10 a (adjustable from 21.6-27.6 V DC)
protected against permanent short circuits
INPUT 85-264 V AC / 90-350 V DC
single phase
W x H x D 60 × 125 × 150 mm
This text is machine translated.
Output:24 V DC / 10 a (adjustable from 21.6-27.6 V DC)
protected against permanent short circuits
INPUT 85-264 V AC / 90-350 V DC
single phase
W x H x D 60 × 125 × 150 mm
This text is machine translated.
