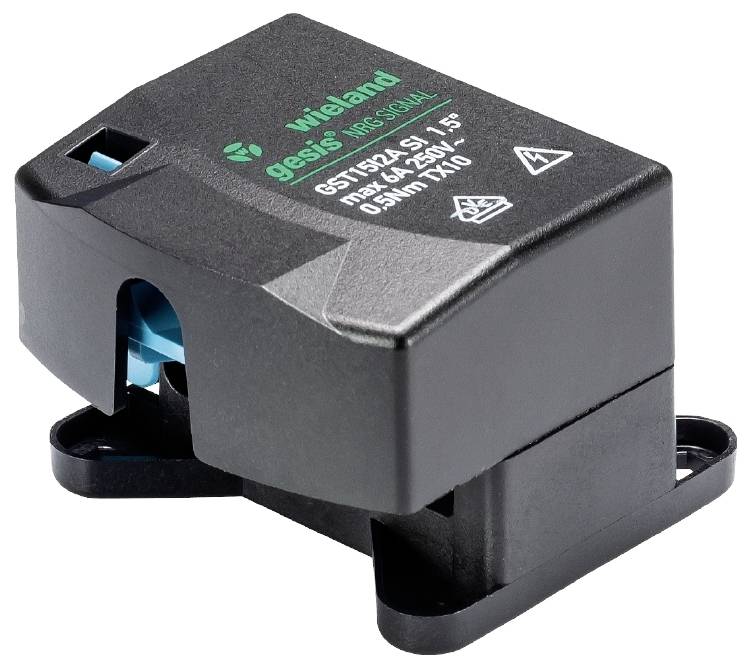

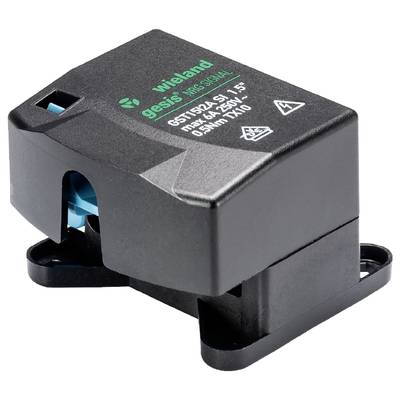

Wieland Electric 91.020.5453.0 Ribbon cable adapter Black
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Technical specifications
- Product type
Ribbon cable adapter
- Type A
Feeder
- Factory colour
Black
- Connection
Screw terminals
- Rated voltage
250 V
- Test current
6 A
- Cable Ø (max.)
7.5 mm
- Cable Ø up to
5.9 mm
- Cable Ø range
5.9 - 7.5 mm
- Number of pins
2
IP20
- System
gesis® NRG
Power supply system
TRUE
Integrated in plug-in connector
6 A
250 V
2
TRUE
Other
IP20
FALSE
1, 2
Blue
0.095 kWh
Screw connection
None
0.5-1.5 mm²
0.5-1.5 mm²
100 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3275028 Wieland Electric 91.020.5453.0 Ribbon cable adapter Black
Description
Gesis® NRG Flat cable feed bus unshielded; color: Black; 250 V; 6 A; IP20; Integrated strain relief for infeed with round cables; diameter: 5.9 to 7.5 mm; connection cross-section 0.5 to 1.5 mm²; piercing contact screws with Torx head; for gesis® NRG flat cables: 5G2.5+2x1.5 and 5G4+2x1.5 without shield.
