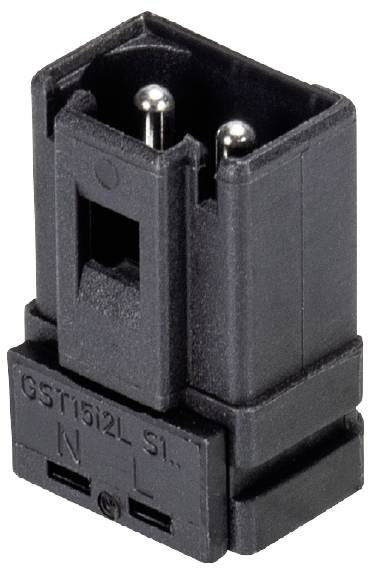

Wieland Electric 91.022.0053.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
5
7% = € 0.09
€ 1.16
10
10% = € 0.12
€ 1.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Solder lug
- Rated voltage
250 V
- Test current
16 A
- Number of pins
2
IP20
15.1 mm
Plug
TRUE
12.2 mm
Soldering connection
Integrated in plug-in connector
16 A
250 V
2
21.5 mm
Polyamide (PA)
Silver-plated
2
Straight
TRUE
4 kV
CuZn
IP20
1
L, N
Black
0.016 kWh
Soldering connection
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3275080 Wieland Electric 91.022.0053.1 Appliance connector
Description
Gesis® MINI device connection
Solder part
Vertically without mounting flange
Number of poles: 2
Plug version
Connection type solder connection
Rated voltage: 250 V
Rated current 16 A
Coding color / contact insert black
This text is machine translated.
Solder part
Vertically without mounting flange
Number of poles: 2
Plug version
Connection type solder connection
Rated voltage: 250 V
Rated current 16 A
Coding color / contact insert black
