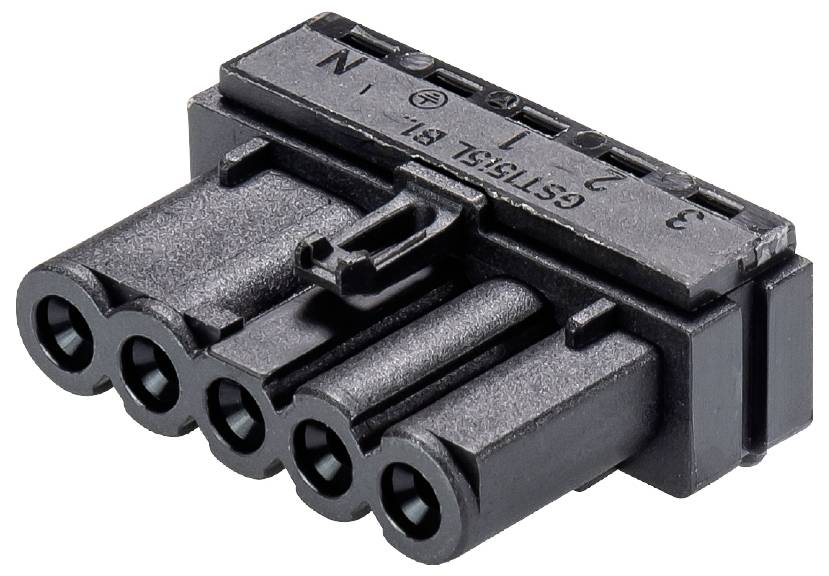

Wieland Electric 91.053.0053.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
5
7% = € 0.18
€ 2.58
10
9% = € 0.26
€ 2.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
90-degree
- Connection
Solder lug
- Rated voltage
250 V
- Test current
16 A
- Number of pins
5
IP20
31 mm
Bus
TRUE
12.2 mm
Soldering connection
Integrated in plug-in connector
16 A
250 V
5
21.5 mm
Polyamide (PA)
Silver-plated
2
Right-angled
TRUE
4 kV
CuZn
IP20
1
3, N, PE, 2, 1
Black
0.032 kWh
Soldering connection
100 °C
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282094 Wieland Electric 91.053.0053.1 Appliance connector
Description
Gesis® MINI device connection
Solder part
Horizontally without mounting flange
Number of pins: 5
Socket version
Connection type solder connection
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert black
This text is machine translated.
Solder part
Horizontally without mounting flange
Number of pins: 5
Socket version
Connection type solder connection
Rated voltage 250 V / 400 V
Rated current 16 A
Coding color / contact insert black
