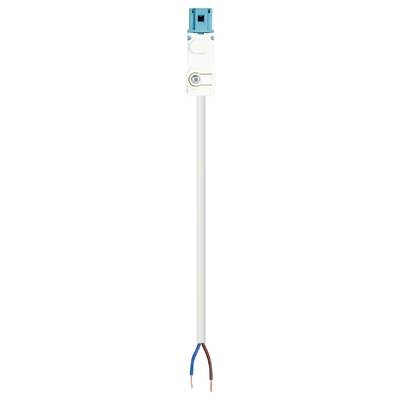

Wieland Electric 91.222.1004.9 Cable White 1 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
6% = € 0.24
€ 3.79
10
8% = € 0.33
€ 3.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
1 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
White
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
6 A
- Number of pins
2
IP20
- System
gesis® MINI
FALSE
1.5 mm²
H05VV-F
White
Integrated in plug-in connector
6 A
250 V
1000 mm
2
White
Silver-plated
2
TRUE
4 kV
11.85 mOhm
IP20
1, 2
Blue
0.354 kWh
8 mm
21 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
5024
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282114 Wieland Electric 91.222.1004.9 Cable White 1 m
Description
Gesis® MINI connection cable
Plug - free ends
Number of poles: 2
Rated voltage: 250 V
Rated current 6 A
Cable type H05VV-F
Fire class ECA
Total length 1 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert pastel blue
This text is machine translated.
Plug - free ends
Number of poles: 2
Rated voltage: 250 V
Rated current 6 A
Cable type H05VV-F
Fire class ECA
Total length 1 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert pastel blue
This text is machine translated.
