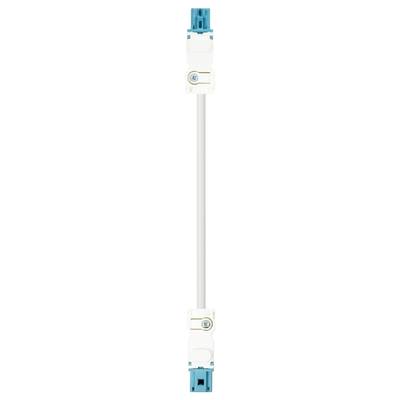

Wieland Electric 91.222.3060.9 Connection White 3 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connection
- Cable length
3 m
- Type A
Socket
- Type B
Plug
- Factory colour
White
- Rated voltage
250 V
- Test current
6 A
- Number of pins
2
IP20
- System
gesis® MINI
TRUE
1.5 mm²
H05Z1Z1-F
White
Integrated in plug-in connector
6 A
250 V
3000 m
2
Polyamide (PA)
White
7.5-7.5 mm
Silver-plated
2
TRUE
4 kV
35.1 mOhm
CuZn
IP20
1, 2
Other
1.112
8 mm
21
Connecting cable
Bus
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
5024
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282029 Wieland Electric 91.222.3060.9 Connection White 3 m
Description
Gesis® MINI connecting cable
Jack / plug
Number of poles: 2
Rated voltage: 250 V
Rated current 6 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert pastel blue
This text is machine translated.
Jack / plug
Number of poles: 2
Rated voltage: 250 V
Rated current 6 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert pastel blue
This text is machine translated.
