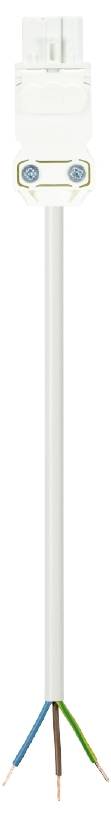

Wieland Electric 91.232.3003.2 Cable White 3 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
5% = € 0.55
€ 10.37
5
7% = € 0.76
€ 10.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
3 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
White
- Connection
Stripped cable
- Rated voltage
250 V
- Test current
16 A
- Number of pins
3
IP20
- System
gesis® MINI
FALSE
1.5 mm²
H05VV-F
White
Integrated in plug-in connector
16 A
250 V
3000 m
3
Polyamide (PA)
White
8.3-8.3 mm
Silver-plated
2
TRUE
4 kV
34.65 mOhm
IP20
L, N, PE
White
1.193
8 mm
21
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9016
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282205 Wieland Electric 91.232.3003.2 Cable White 3 m
Description
Gesis® MINI connection cable
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert white
This text is machine translated.
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05VV-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert white
This text is machine translated.
