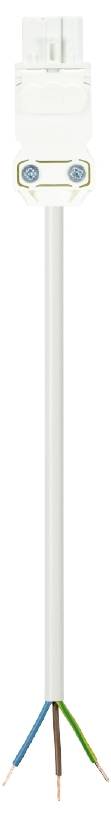

Wieland Electric 91.232.6063.2 Cable White 6 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
4% = € 0.82
€ 17.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
6 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
White
- Rated voltage
250 V
- Test current
16 A
- Number of pins
3
IP20
- System
gesis® MINI
TRUE
1.5 mm²
H05Z1Z1-F
White
Integrated in plug-in connector
16 A
250 V
6000 mm
3
White
Silver-plated
2
TRUE
4 kV
68.85 mOhm
IP20
L, N, PE
White
2.309 kWh
8 mm
21 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9016
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282175 Wieland Electric 91.232.6063.2 Cable White 6 m
Description
Gesis® MINI connection cable
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 6 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert white
This text is machine translated.
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 6 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert white
