Wieland Electric 91.257.3063.2 Cable White 3 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
3 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
White
- Rated voltage
250 V
- Test current
16 A
- Number of pins
5
IP20
- System
gesis® MINI
TRUE
1.5 mm²
H05Z1Z1-F
White
Integrated in plug-in connector
16 A
250 V
3000 mm
5
White
Silver-plated
2
TRUE
4 kV
34.65 mOhm
IP20
3, N, PE, 2, 1
White
1.673 kWh
8 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9016
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282342 Wieland Electric 91.257.3063.2 Cable White 3 m
Description

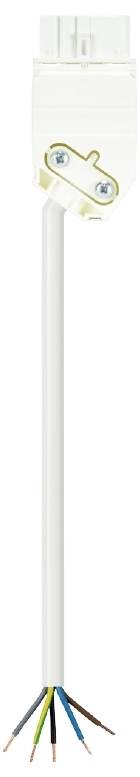

Gesis® MINI connection cable
Female connector - free end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert white
This text is machine translated.
Female connector - free end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert white
This text is machine translated.
