Wieland Electric 91.921.3553.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
5
7% = € 0.16
€ 2.18
10
9% = € 0.21
€ 2.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
7.7 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 7.7 mm
- Number of pins
2
IP20
- System
gesis® MINI
53.2 mm
Bus
TRUE
17.7 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
TRUE
2
13.8 mm
Polyamide (PA)
6-7.7 mm
Silver-plated
2
TRUE
4 kV
0.45 mOhm
CuZn
IP20
1
L, N
Grey
0.047 kWh
0.5-2.5 mm²
0.5-2.5 mm²
100 °C
7032
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282213 Wieland Electric 91.921.3553.0 Connector

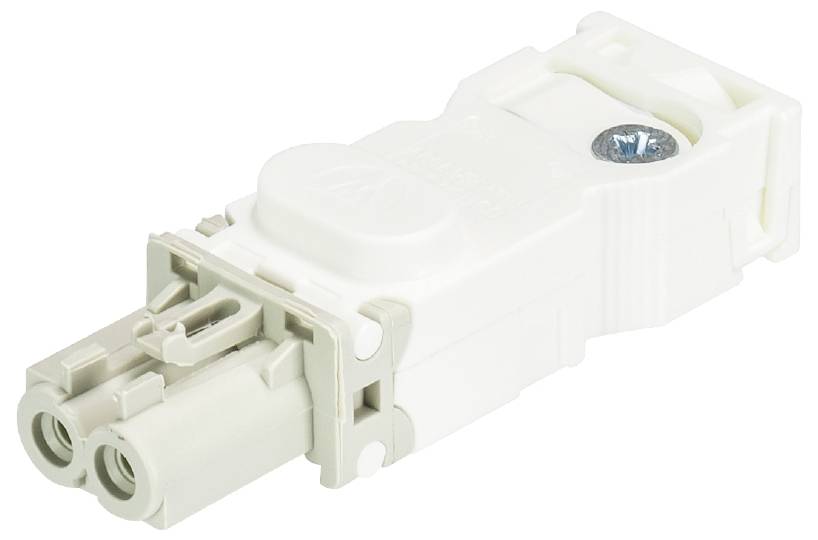

Description
Gesis® MINI connector
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Cable diameter 6 - 7.7 mm
Coding color / contact insert pebble gray
This text is machine translated.
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Cable diameter 6 - 7.7 mm
Coding color / contact insert pebble gray
This text is machine translated.
