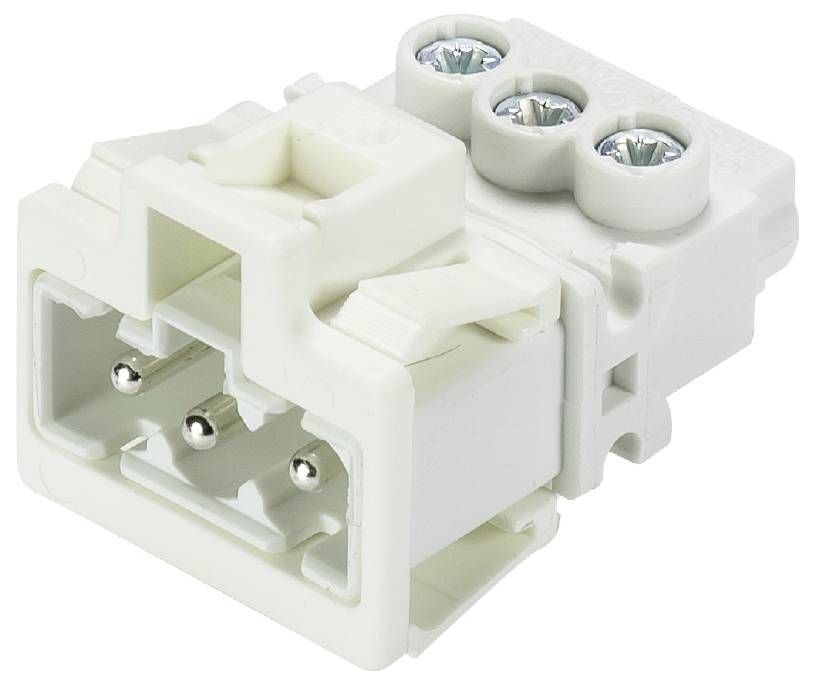

Wieland Electric 91.932.9053.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
5
6% = € 0.12
€ 1.80
10
9% = € 0.18
€ 1.74
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Number of pins
3
IP20
22 mm
Plug
TRUE
19.6 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
3
30.2 mm
Polyamide (PA)
Silver-plated
2
Straight
TRUE
4 kV
CuZn
IP20
1
L, N, PE
White
0.036 kWh
Snap-in/screw-in device
White
0.5-2.5 mm²
0.5-2.5 mm²
100 °C
9016
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282465 Wieland Electric 91.932.9053.0 Appliance connector
Description
Gesis® MINI device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 3
Plug version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Coding color / contact insert white
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 3
Plug version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Coding color / contact insert white
This text is machine translated.
