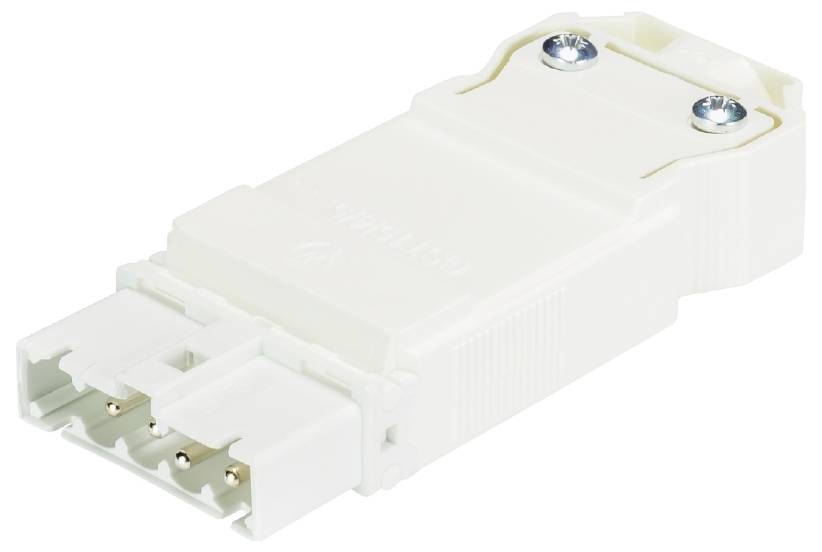

Wieland Electric 91.942.4053.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.77
5
6% = € 0.22
€ 3.55
10
8% = € 0.31
€ 3.46
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
12.5 mm
- Cable Ø up to
8.5 mm
- Cable Ø range
8.5 - 12.5 mm
- Number of pins
4
IP20
- System
gesis® MINI
32.6 mm
Plug
TRUE
15 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
TRUE
4
78 mm
Polyamide (PA)
8.5-12.5 mm
Silver-plated
2
TRUE
4 kV
0.45 mOhm
CuZn
IP20
1
2, N, PE, 1
White
0.109 kWh
0.5-2.5 mm²
0.5-2.5 mm²
100 °C
9016
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282557 Wieland Electric 91.942.4053.0 Connector
Description
Gesis® MINI connector
straight
In 5-pin case
Number of pins: 4
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 8.5 - 12.5 mm
Coding color / contact insert white
This text is machine translated.
straight
In 5-pin case
Number of pins: 4
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 8.5 - 12.5 mm
Coding color / contact insert white
This text is machine translated.
