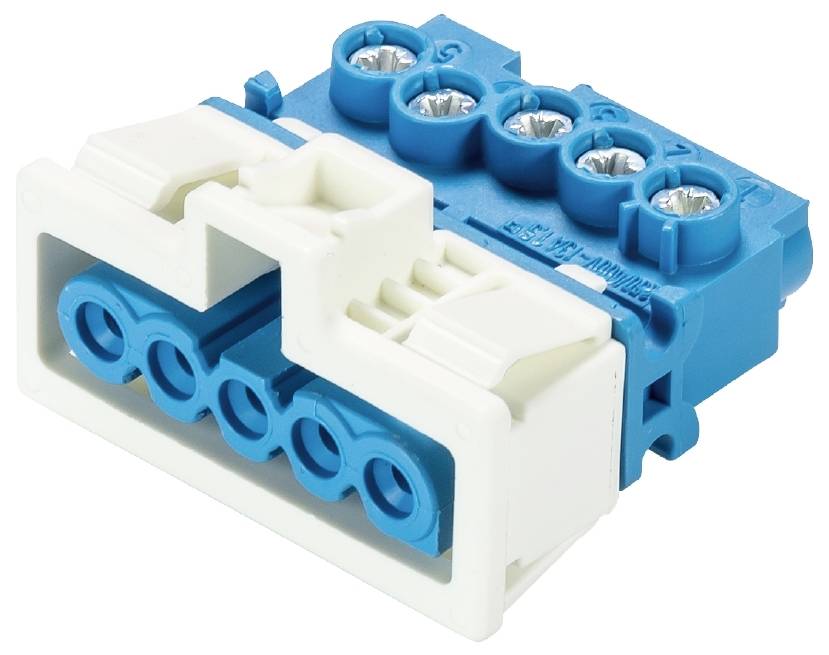

Wieland Electric 91.951.9353.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
5
7% = € 0.22
€ 3.13
10
10% = € 0.32
€ 3.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€ 3.35
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
13 A
- Number of pins
5
IP20
34.6 mm
Bus
TRUE
19.6 mm
Screw connection
Integrated in plug-in connector
13 A
50 V
5
31.2 mm
Polyamide (PA)
Silver-plated
2
Straight
TRUE
4 kV
CuZn
IP20
1
1, 2, 3, 4, 5
Blue
0.058 kWh
Snap-in/screw-in device
White
0.5-2.5 mm²
0.5-2.5 mm²
100 °C
5012
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282223 Wieland Electric 91.951.9353.0 Appliance connector
Description
Gesis® MINI device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage: 50 V
Rated current 13 A
Coding color / contact insert light blue
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Socket version
Connection type: screw terminals.
Rated voltage: 50 V
Rated current 13 A
Coding color / contact insert light blue
This text is machine translated.
