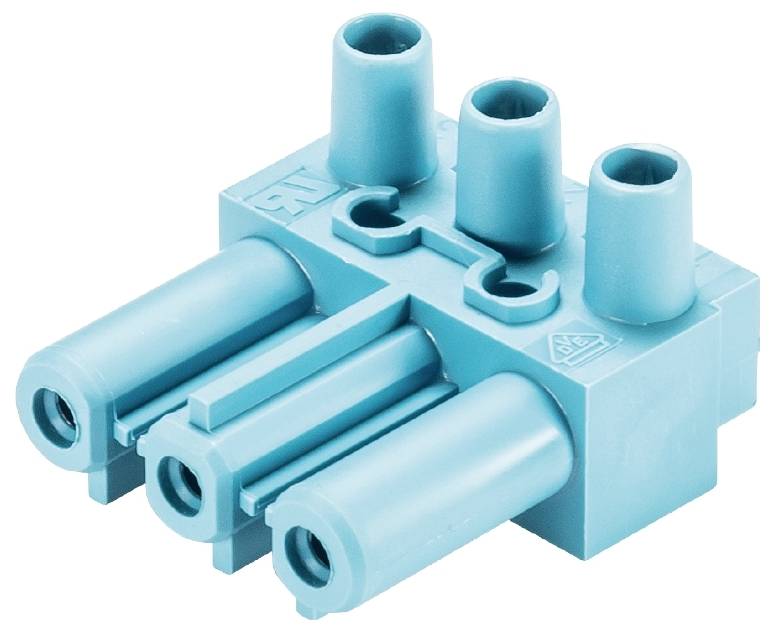

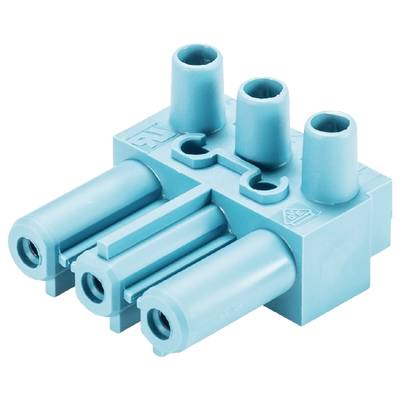

Wieland Electric 92.031.3758.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
5
7% = € 0.14
€ 1.95
10
9% = € 0.19
€ 1.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP20
28.2
Bus
TRUE
19.5 mm
Screw connection
Other
Integrated in plug-in connector
20 A
250 V
3
31.5 m
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
1
1, 2, 3
Other
0.037
Built-in part/plug-in connection
0.75-4 mm²
0.75-4 mm²
100 °C
5024
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282732 Wieland Electric 92.031.3758.0 Appliance connector
Description
Gesis® CLASSIC device connection
Mounting part
Screw terminal connection easy
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert pastel blue
This text is machine translated.
Mounting part
Screw terminal connection easy
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert pastel blue
This text is machine translated.
