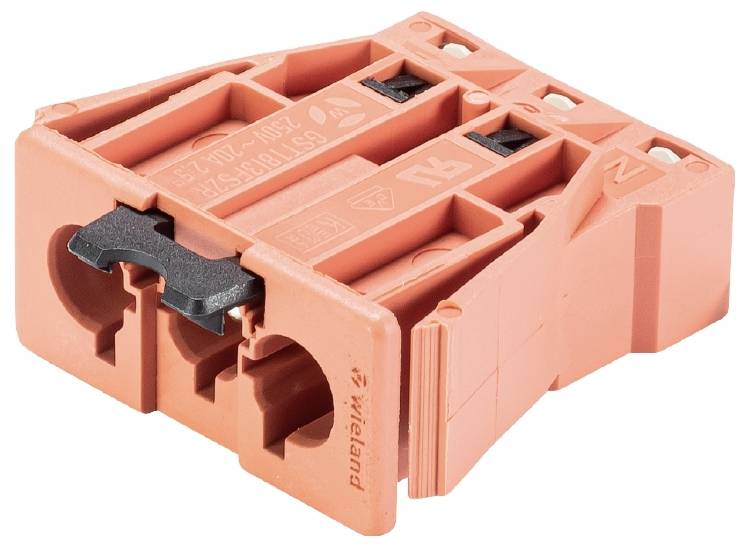

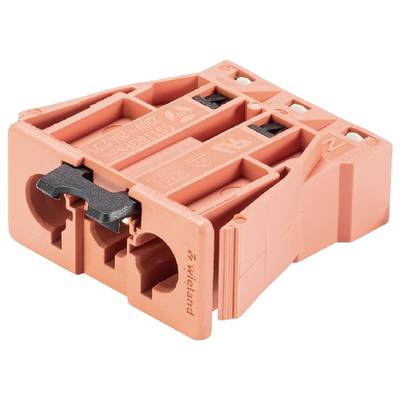

Wieland Electric 92.032.8558.0 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
5
7% = € 0.21
€ 2.97
10
9% = € 0.30
€ 2.88
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP20
32.8 mm
Plug
TRUE
17.5 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
3
37.5 mm
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
2
L, N, PE
Red
0.067 kWh
Snap-in/screw-in device
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
3022
Description
Gesis® CLASSIC device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 3
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert salmon red
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of poles: 3
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert salmon red
This text is machine translated.
