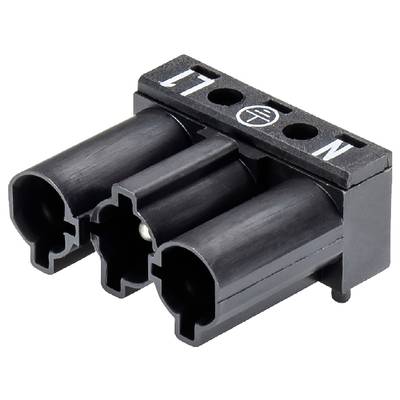

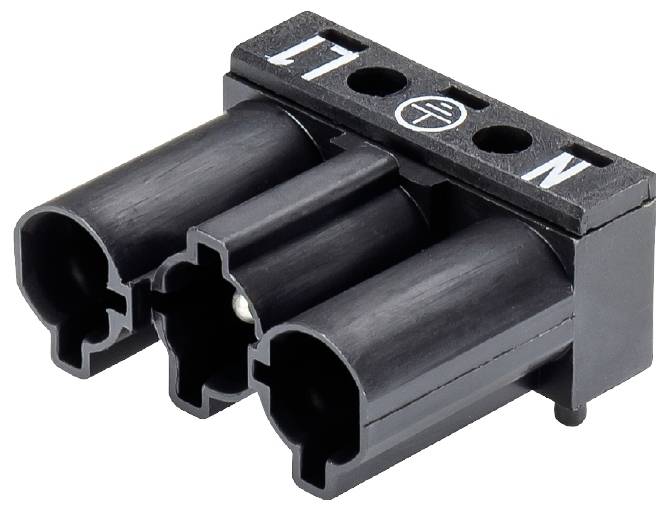

Wieland Electric 92.034.0058.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
5
7% = € 0.16
€ 2.18
10
9% = € 0.21
€ 2.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
90-degree
- Connection
Solder lug
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP20
28.2 mm
Plug
TRUE
13 mm
Soldering connection
Integrated in plug-in connector
20 A
250 V
3
24 mm
Polyamide (PA)
Tinned
2
Right-angled
TRUE
4 kV
CuZn
IP20
1
L, N, PE
Black
0.026 kWh
Soldering connection
100 °C
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282614 Wieland Electric 92.034.0058.1 Appliance connector
Description
Gesis® CLASSIC device connection
Solder part
Horizontally without mounting flange
Number of poles: 3
Plug version
Connection type solder connection
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
Solder part
Horizontally without mounting flange
Number of poles: 3
Plug version
Connection type solder connection
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
