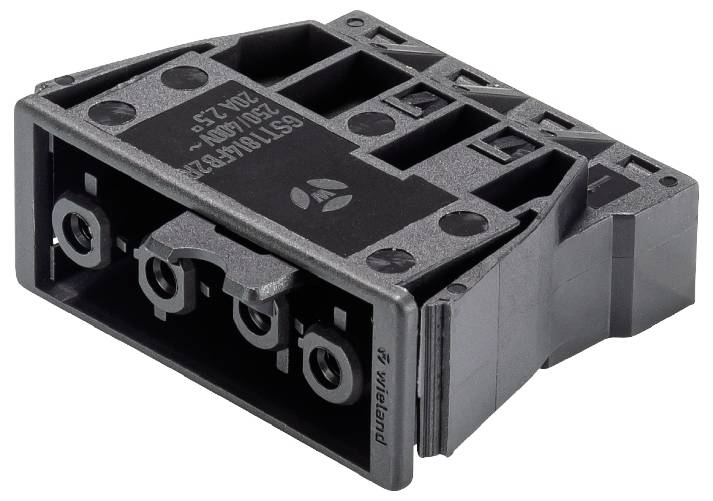

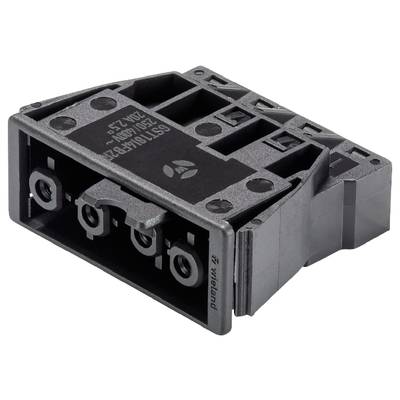

Wieland Electric 92.041.9658.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.19
5
6% = € 0.24
€ 3.95
10
8% = € 0.34
€ 3.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.19 / piece)
€ 4.19
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Number of pins
4
IP20
42.5
Bus
TRUE
18.5 mm
Spring clamp connection
Black
Integrated in plug-in connector
20 A
400 V
4
38 m
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
2
2, N, PE, 1
Black
0.083
Snap-in/screw-in device
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282821 Wieland Electric 92.041.9658.1 Appliance connector
Description
Gesis® CLASSIC device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 4
Socket version
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 4
Socket version
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
