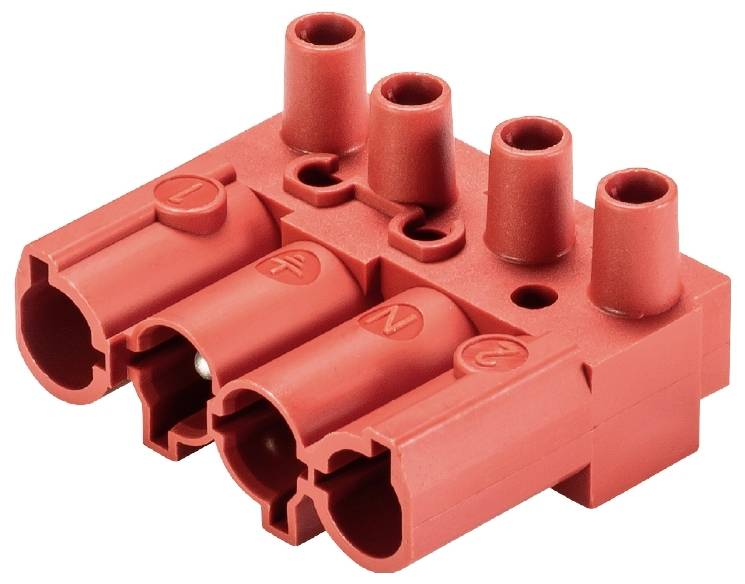

Wieland Electric 92.042.3453.5 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
5
7% = € 0.17
€ 2.34
10
9% = € 0.23
€ 2.28
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
4
IP20
38 mm
Plug
TRUE
19.5 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
4
31.5 mm
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
1
2, N, PE, 1
Other
0.046 kWh
Built-in part/plug-in connection
0.75-4 mm²
0.75-4 mm²
100 °C
3013
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282868 Wieland Electric 92.042.3453.5 Appliance connector
Description
Gesis® CLASSIC device connection
Mounting part
Screw terminal connection easy
Number of pins: 4
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert tomato red
This text is machine translated.
Mounting part
Screw terminal connection easy
Number of pins: 4
Plug version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert tomato red
This text is machine translated.
