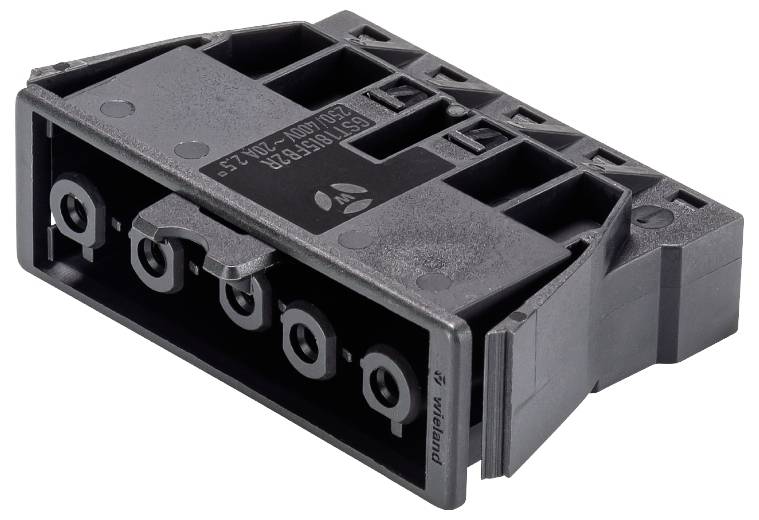

Wieland Electric 92.051.9658.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
6% = € 0.30
€ 5.15
5
8% = € 0.42
€ 5.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Technical specifications
- Connection
Spring-loaded terminal
- Type A
Socket
IP20
- Connector version
straight
- Number of pins
5
- Test current
20 A
- Rated voltage
250 V
52.3
Bus
TRUE
18.5 mm
Spring clamp connection
Black
Integrated in plug-in connector
20 A
400 V
5
38 m
Polyamide (PA)
Silver-plated
2
Straight
TRUE
4 kV
CuZn
IP20
2
3, N, PE, 2, 1
Black
0.1
Snap-in/screw-in device
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282786 Wieland Electric 92.051.9658.1 Appliance connector
Description
Gesis® CLASSIC device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Socket version
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert black
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Socket version
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert black
