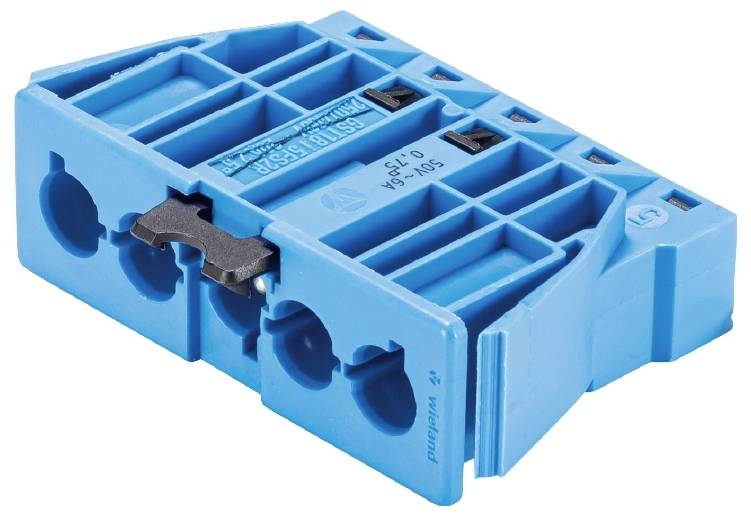

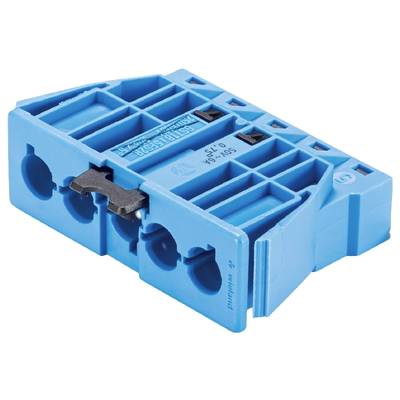

Wieland Electric 92.052.8358.0 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
6% = € 0.30
€ 5.15
5
8% = € 0.42
€ 5.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
50 V
- Test current
6 A
- Number of pins
5
IP20
55 mm
Plug
TRUE
18.5 mm
Spring clamp connection
Integrated in plug-in connector
6 A
50 V
5
38 mm
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
2
1, 2, 3, 4, 5
Blue
0.106 kWh
Snap-in/screw-in device
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
5012
Description
Gesis® CLASSIC device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Plug version
Spring-loaded terminal connection type
Rated voltage: 50 V
Rated current 6 A
Coding color / contact insert light blue
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Plug version
Spring-loaded terminal connection type
Rated voltage: 50 V
Rated current 6 A
Coding color / contact insert light blue
This text is machine translated.
