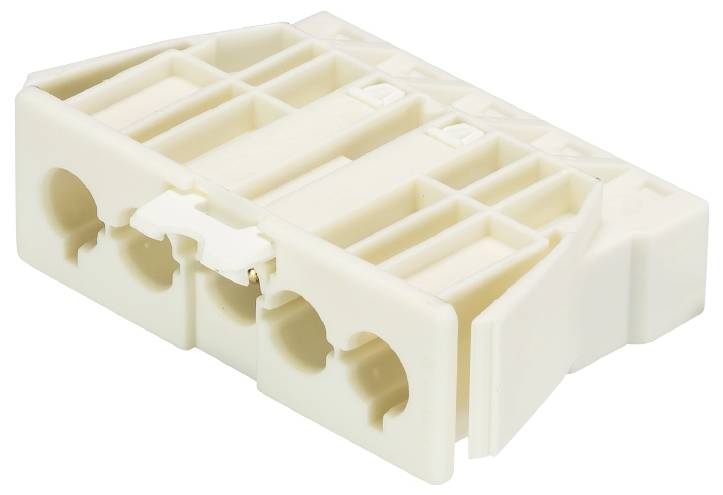

Wieland Electric 92.052.9658.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
3
5% = € 0.32
€ 5.55
5
8% = € 0.45
€ 5.42
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Number of pins
5
IP20
52.3 mm
Plug
TRUE
18.5 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
5
38 mm
Polyamide (PA)
Tinned
2
Straight
TRUE
4 kV
CuZn
IP20
2
3, N, PE, 2, 1
White
0.099 kWh
Snap-in/screw-in device
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
9016
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282954 Wieland Electric 92.052.9658.0 Appliance connector
Description
Gesis® CLASSIC device connection
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Plug version
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert white
This text is machine translated.
Snap-In
Material thickness of case 0.5 - 1.5 mm
Number of pins: 5
Plug version
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert white
