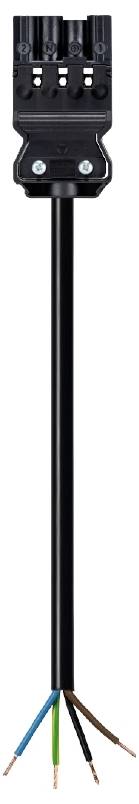

Wieland Electric 92.208.6074.1 Cable Black 6 m
EAN:
Part number:
Item no:
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
6 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Number of pins
4
IP40
- System
gesis® CLASSIC
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
6000 mm
4
Black
Tinned
2
TRUE
4 kV
41.44 mOhm
IP40
2, N, PE, 1
Black
3.224 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
B2ca
s1
d1
a1
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3282870 Wieland Electric 92.208.6074.1 Cable Black 6 m
Description
Gesis® CLASSIC connection cable
Plug - free ends
Number of pins: 4
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Plug - free ends
Number of pins: 4
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class B2ca s1 d1
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
