Wieland Electric 92.238.8014.2 Cable White 8 m
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
8 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
White
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP40
- System
gesis® CLASSIC
FALSE
2.5 mm²
H03V2V2-F
White
Integrated in plug-in connector
20 A
250 V
8000 mm
3
White
Tinned
2
TRUE
4 kV
55.22 mOhm
IP40
L, N, PE
White
3.615 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
90 °C
Eca
None
None
None
9016
Description

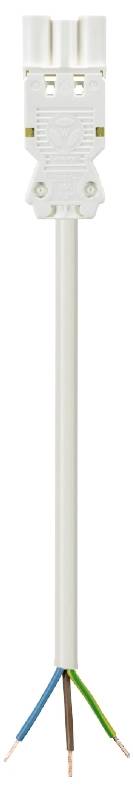

Gesis® CLASSIC connection cable
Plug - free ends
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05V2V2-F
Fire class ECA
Total length 8 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert white
This text is machine translated.
Plug - free ends
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05V2V2-F
Fire class ECA
Total length 8 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert white
This text is machine translated.
