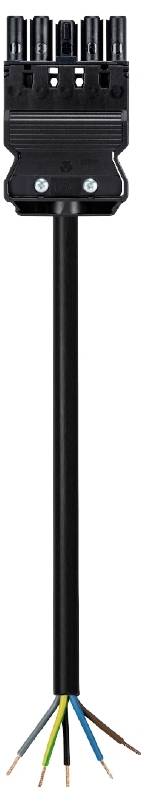

Wieland Electric 92.258.6003.1 Cable Black 6000 mm
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
6000 mm
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
12.1 mm
- Cable Ø up to
12.1 mm
- Cable Ø range
12.1 - 12.1 mm
- Number of pins
5
IP40
- System
gesis® CLASSIC
FALSE
2.5 mm²
H05VV-F
Black
Integrated in plug-in connector
20 A
250 V
6000 mm
5
Black
Tinned
2
TRUE
4 kV
41.44 mOhm
IP40
3, N, PE, 2, 1
Black
5.016 kWh
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284706 Wieland Electric 92.258.6003.1 Cable Black 6000 mm
Description
Gesis® CLASSIC connection cable
Female connector - free end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05VV-F
Fire class ECA
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
Female connector - free end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 20 A
Cable type H05VV-F
Fire class ECA
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert black
This text is machine translated.
