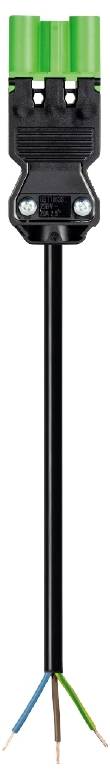

Wieland Electric 92.297.3064.7 Cable Black 3 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Technical specifications
- Cable length
3 m
- Factory colour
Black
- Type A
Open cable ends
- Type B
Plug
IP40
- System
gesis® CLASSIC
- Number of pins
3
- Test current
16 A
- Rated voltage
250 V
TRUE
1.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
16 A
250 V
3000 mm
3
Black
Tinned
2
TRUE
4 kV
34.6 mOhm
IP40
1, 2, PE
Green
1.218 kWh
9 mm
37 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
6017
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284600 Wieland Electric 92.297.3064.7 Cable Black 3 m
Description
Gesis® CLASSIC connection cable
Plug - free ends
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert, mamagn green
This text is machine translated.
Plug - free ends
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 3 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert, mamagn green
This text is machine translated.
