Wieland Electric 92.298.7063.7 Cable Black 7 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.25
€ 30.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
7 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP40
- System
gesis® CLASSIC
TRUE
2.5 mm²
H05Z1Z1-F
Black
Integrated in plug-in connector
20 A
250 V
7000 mm
3
Black
Tinned
2
TRUE
4 kV
48.28 mOhm
IP40
1, 2, PE
Green
4.073 kWh
9 mm
37 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
70 °C
Eca
None
None
None
6017
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284651 Wieland Electric 92.298.7063.7 Cable Black 7 m
Description

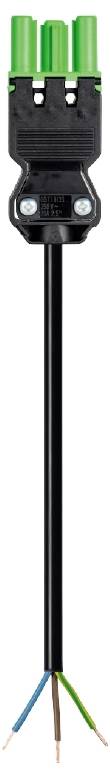

Gesis® CLASSIC connection cable
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert, mamagn green
This text is machine translated.
Female connector - free end
Number of poles: 3
Rated voltage: 250 V
Rated current 20 A
Cable type H05Z1Z1-F
Fire class ECA
Total length 7 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert, mamagn green
This text is machine translated.
