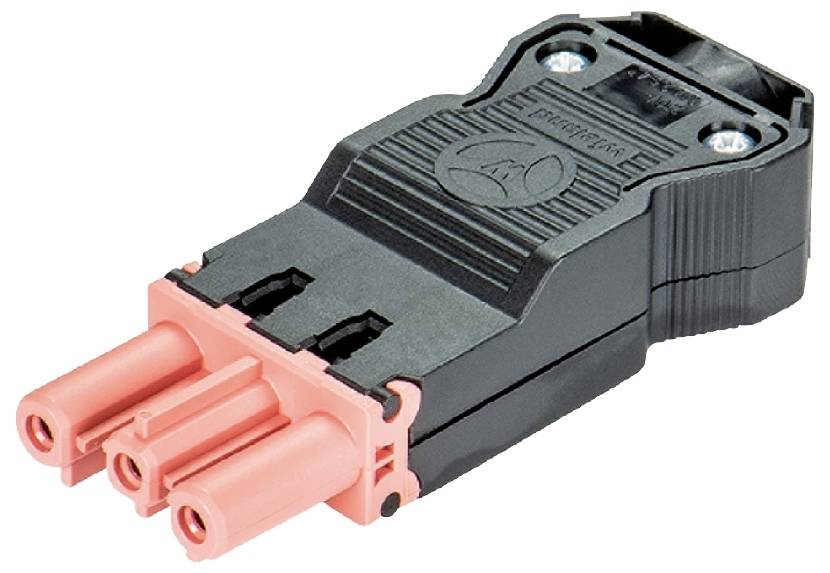

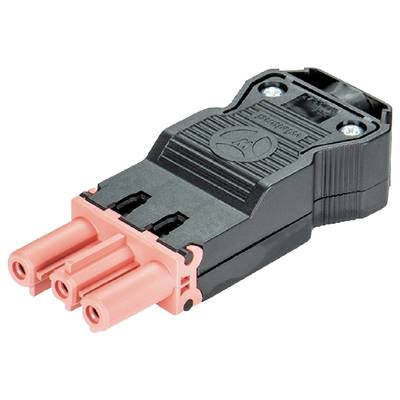

Wieland Electric 92.931.5653.0 Connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
6% = € 0.30
€ 5.15
5
8% = € 0.42
€ 5.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€
Technical specifications
- Product type
Connector
- Type A
Socket
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14.5 mm
- Cable Ø up to
10.5 mm
- Cable Ø range
10.5 - 14.5 mm
- Number of pins
3
IP40
32 mm
Bus
TRUE
17 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
3
77.5 mm
Polyamide (PA)
10.5-14.5 mm
Tinned
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
L, N, PE
Red
0.109 kWh
0.75-4 mm²
0.75-4 mm²
100 °C
3022
Description
Gesis® CLASSIC connector
Number of poles: 3
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10.5 - 14.5 mm
Coding color / contact insert salmon red
This text is machine translated.
Number of poles: 3
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10.5 - 14.5 mm
Coding color / contact insert salmon red
This text is machine translated.
