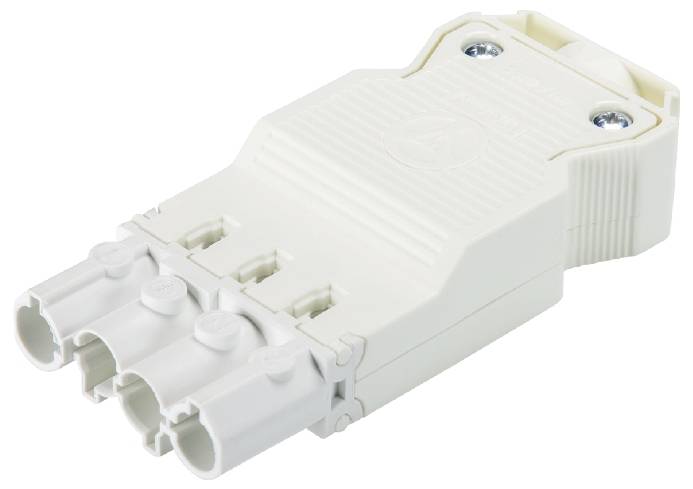

Wieland Electric 92.944.5053.0 Connector
EAN:
Part number:
Item no:
Number (Package size 500 pc(s))
Total (€ 5.00 / piece)
€ 2,500.00
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Plug
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
15.5 mm
- Cable Ø up to
11.5 mm
- Cable Ø range
11.5 - 15.5 mm
- Number of pins
4
IP40
38 mm
Plug
TRUE
17.5 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
4
85.2 mm
Polyamide (PA)
11.5-15.5 mm
Tinned
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
2, N, PE, 1
White
0.148 kWh
0.75-4 mm²
0.75-4 mm²
100 °C
9016
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284645 Wieland Electric 92.944.5053.0 Connector
Description
PLUG CONNECTOR-GST18I4S S1 ZR2 WHITE
