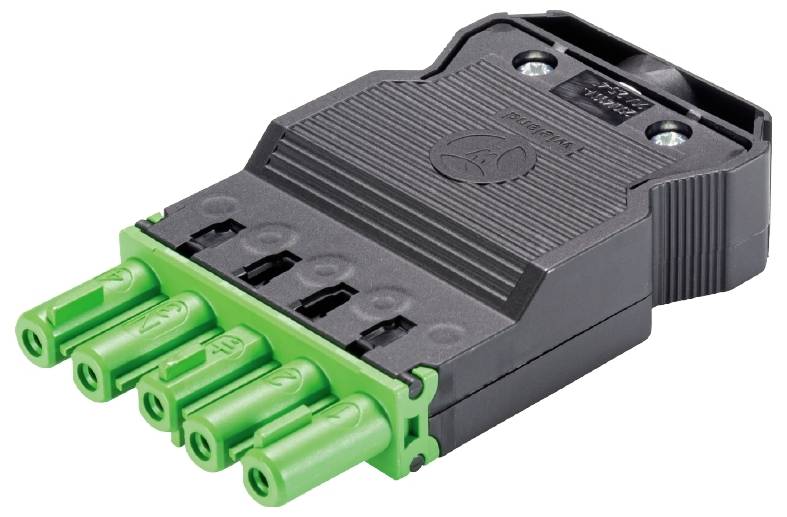

Wieland Electric 92.953.5253.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
5% = € 0.48
€ 8.76
5
7% = € 0.68
€ 8.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
threaded
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
15.5 mm
- Cable Ø up to
11.5 mm
- Cable Ø range
11.5 - 15.5 mm
- Number of pins
5
IP40
- System
gesis® CLASSIC
47.8 mm
Bus
TRUE
17.5 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
5
84.4 mm
Polyamide (PA)
11.5-15.5 mm
Tinned
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
3, N, PE, 2, 1
Green
0.178 kWh
0.75-4 mm²
0.75-4 mm²
100 °C
6017
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284751 Wieland Electric 92.953.5253.0 Connector
Description
Gesis® CLASSIC connector
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 11.5 - 15.5 mm
Coding color / contact insert, mamagn green
This text is machine translated.
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 11.5 - 15.5 mm
Coding color / contact insert, mamagn green
