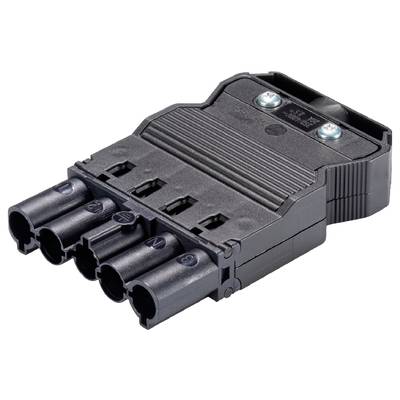

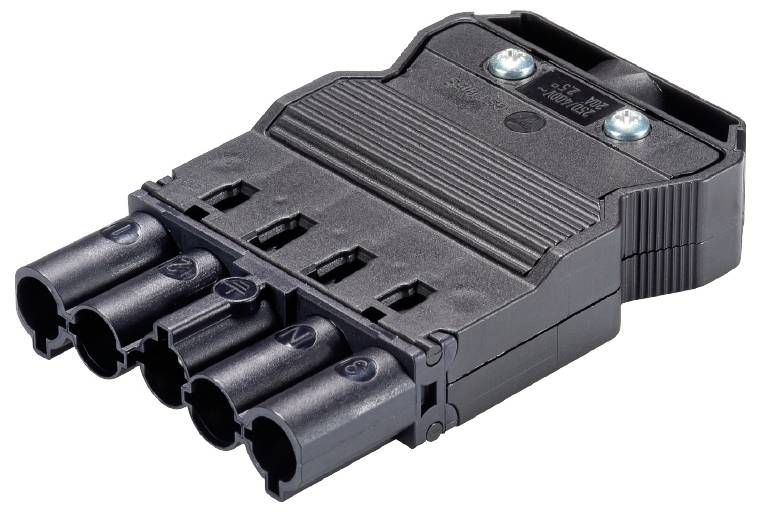

Wieland Electric 92.954.4053.1 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.29
€ 4.74
10
8% = € 0.41
€ 4.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
12 mm
- Cable Ø up to
7 mm
- Cable Ø range
7 - 12 mm
- Number of pins
5
IP40
- System
gesis® CLASSIC
- Contact material
CuZn
47.75 mm
Plug
TRUE
15 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
5
76.4 mm
Polyamide (PA)
7-12 mm
Silver-plated
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
3, N, PE, 2, 1
Black
0.16 kWh
0.75-2.5 mm²
0.75-2.5 mm²
100 °C
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284836 Wieland Electric 92.954.4053.1 Connector
Description
Gesis® CLASSIC connector
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 7 - 12 mm
Coding color / contact insert black
This text is machine translated.
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 7 - 12 mm
Coding color / contact insert black
This text is machine translated.
