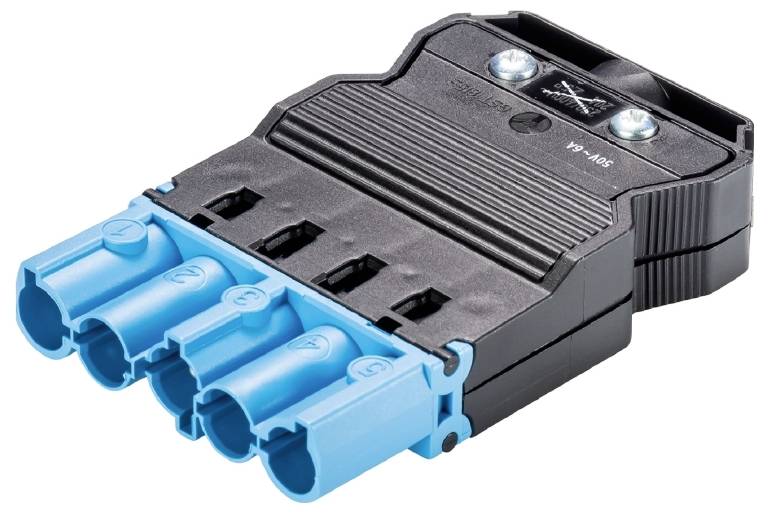

Wieland Electric 92.954.4153.0 Connector
EAN:
Part number:
Item no:
Number
Total (€ 3.35 / piece)
€ 3.35
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
Connector
- Type A
Plug
- Connection
Screw connection
- Rated voltage
50 V
- Test current
6 A
- Cable Ø (max.)
12 mm
- Cable Ø up to
7 mm
- Cable Ø range
7 - 12 mm
- Number of pins
5
IP40
- System
gesis® CLASSIC
47.75 mm
Plug
TRUE
15 mm
Screw connection
Integrated in plug-in connector
6 A
50 V
TRUE
5
76.4 mm
Polyamide (PA)
7-12 mm
Tinned
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
1, 2, 3, 4, 5
Blue
0.161 kWh
0.75-2.5 mm²
0.75-2.5 mm²
100 °C
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284852 Wieland Electric 92.954.4153.0 Connector
Description
Gesis® CLASSIC connector
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage: 50 V
Rated current 6 A
Cable diameter 7 - 12 mm
Coding color / contact insert light blue
This text is machine translated.
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage: 50 V
Rated current 6 A
Cable diameter 7 - 12 mm
Coding color / contact insert light blue
This text is machine translated.
