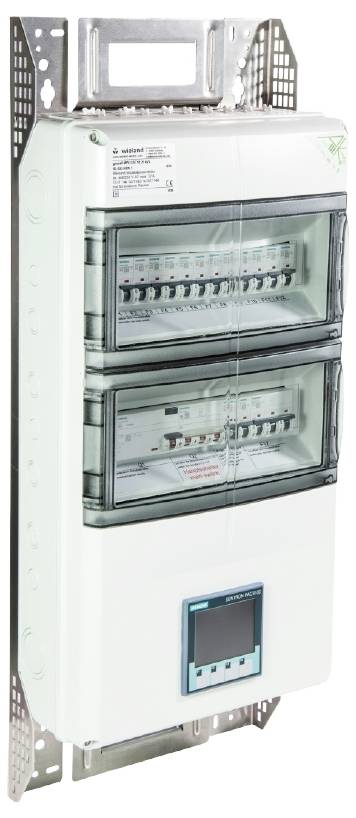

Wieland Electric 93.053.6009.1 WIV GST18 20 kVA Typ 1b Distributor box Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distributor box
Mounting type
Surface-mount
Width
315 mm
Height
630 mm
Dim
(W x H) 315 mm x 630 mm
Number
Total (€ 3,340.34 / piece)
€ 3,340.34
plus VAT.
Technical specifications
- Product type
Distributor box
- Mounting type
Surface-mount
- Width
315 mm
- Height
630 mm
- Dim
(W x H) 315 mm x 630 mm
- Content
1 pc(s)
Surface mounted (plaster)
315 mm
630 mm
IP20
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285052 Wieland Electric 93.053.6009.1 WIV GST18 20 kVA Typ 1b Distributor box Surface-mount Content 1 pc(s)
Description
Gesis® WIV System – Pre-wired system distributor with plug-in power supply via a RST50 or 32 A CEKON three-phase power supply for a maximum power input of 20 kVA. Thanks to the integrated measuring device, consumption measurement as well as the monitoring of a symmetrical load distribution is possible on all external conductors. The outlets are made via the installation connector system GST18® approved in accordance with DIN EN 61535. Each circuit is individually protected
The 16 A outputs are FI-protected. Multiple connections can be switched on or off via a common main switch. The distribution system consists of switchable and non-switchable exits. If required, the non-switchable exits can be used to operate, for example, emergency lighting or cooling systems. They are also suitable for extending existing installations and are easy to put into operation. One 3 m adapter cable
32 A CEKON on RST50 is included in delivery
This text is machine translated.
The 16 A outputs are FI-protected. Multiple connections can be switched on or off via a common main switch. The distribution system consists of switchable and non-switchable exits. If required, the non-switchable exits can be used to operate, for example, emergency lighting or cooling systems. They are also suitable for extending existing installations and are easy to put into operation. One 3 m adapter cable
32 A CEKON on RST50 is included in delivery
This text is machine translated.
