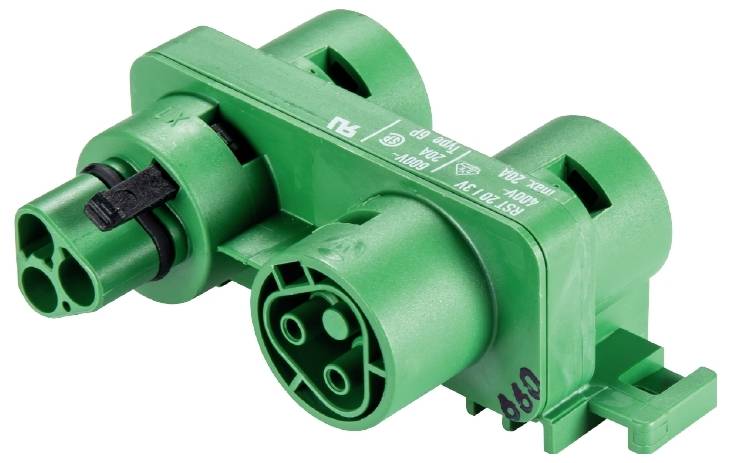

Wieland Electric 96.020.0155.7 Distributor
EAN:
Part number:
Item no:
Number (Package size 100 pc(s))
Total (€ 9.82 / piece)
€ 982.35
plus VAT.
14-day return policy included
Technical specifications
- Product type
Distributor
- Rated voltage
250 V
- Test current
20 A
- Number of pins
2
IP66
- System
gesis® CLASSIC
69.6 mm
TRUE
31.3 mm
Integrated in plug-in connector
20 A
250 V
1
3
2
85.8 mm
Polyamide (PA)
Silver-plated
3
4 kV
CuZn
IP66
1, 2
Green
0.23 kWh
Distribution terminal block
100 °C
6002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285041 Wieland Electric 96.020.0155.7 Distributor
Description
RST® CLASSIC distributor
Parallel connection
With mounting option
Number of poles: 2
Rated voltage: 250 V
Rated current 20 A
Number of inputs 1
Number of outputs 3
Coding color / contact insert leaf green
This text is machine translated.
Parallel connection
With mounting option
Number of poles: 2
Rated voltage: 250 V
Rated current 20 A
Number of inputs 1
Number of outputs 3
Coding color / contact insert leaf green
This text is machine translated.
