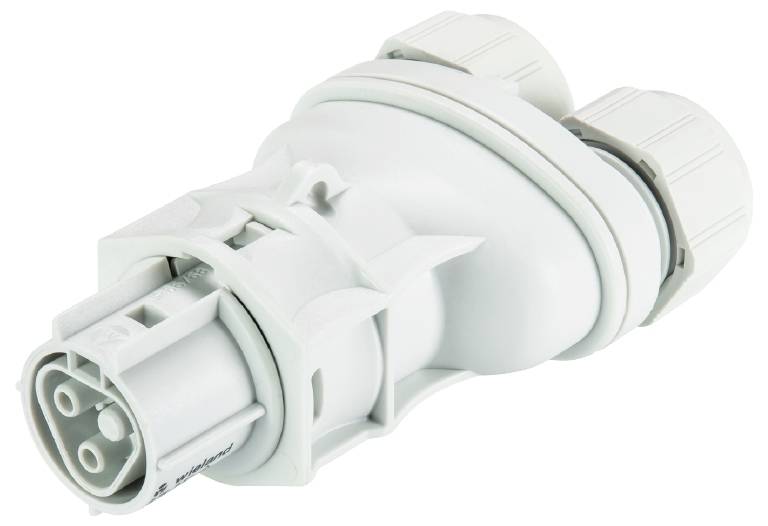

Wieland Electric 96.021.0253.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Socket
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
2
IP66
59 mm
Bus
TRUE
38 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
TRUE
2
97 mm
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
0.8 mOhm
CuZn
IP66
2
L, N
Grey
0.52 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285150 Wieland Electric 96.021.0253.0 Connector
Description
RST® CLASSIC connectors
Double connector
Number of poles: 2
Socket
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert light GRAY
This text is machine translated.
Double connector
Number of poles: 2
Socket
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert light GRAY
This text is machine translated.
