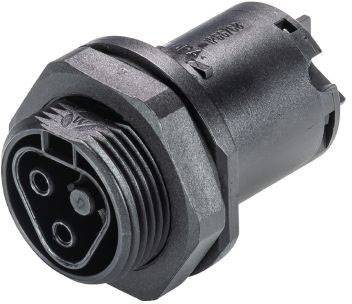

Wieland Electric 96.021.5053.1 Power Connector - Gesis IP+ Series
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, built-in
Total no. of pins
2
Connection
Screws
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Highlights & Details
Wieland Electric 96.021.5053.1 Power Connector - Gesis IP+ Series
- IP 65 - IP 68
Our service for you
Technical specifications
- Instructions: DIN VDE 0606 T200
- DIN EN 61984 (VDE 0627)
- VDE 0110, IEC 60999: UL 2238
- CSA: C22.2 No.182.2-M1987
- Type
96.021.5053.1
- Product type
Bullet connector
- Connector type
Socket, built-in
- Total no. of pins
2
- Connection
Screws
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+100 °C
- Nominal current
20 A
- Min. temperature
-40 °C
- Nominal current - rounded value
20 A
- Nominal voltage
250 V
- Contact material
Brass
- Cable Ø (max.)
6 mm
- Cable Ø up to
0.75 mm
- Case material
Thermoplastic
- Connection angle
180°
- Manufacturer part #
96.021.5053.1
- Cable Ø range
0.75 - 6 mm
- Number of pins
2
- max. cross section
4 mm²
- Cross-section range
4 mm² (max)
- RoHS-compliant
Yes
Protection class II
- Series
RST® CLASSIC
- Material (details)
Contact parts: Brass · Housing: Thermoplastic resin PA 66
- Type
Device-Connector M25
- Ambient temperature
-40 - +100 °C
- Cross section
0.75 - 4 mm²
- Connection
Screws
- Cable diameter (details)
-
- Temperature range
-40 - +100 °C
Documents & Downloads
Datasheet
Datasheet 741598 Wieland Electric 96.021.5053.1 Power Connector - Gesis IP+ Series
Description
Minimum installation work required, with few individual parts. Simple, secure connection. All parts are re-usable. Considerable time and cost savings. Complete installation system. Consumers can be connected quickly and securely with each other, without error and in difficult conditions. Mögliche Anwendungen sind: Underground parking/Multi-storey car parks, Industrial buildings,Outdoor area, Construction sites, Light advertising installations, temporary installations (e.g.. Christmas or festival tents).
The series RST20i2 is suitable for application in protection class II and is downwards compatible with 3-pin system RST20i3. Therefore it can be ignored from System with protection contact on the 2-pin System - but not vice versa.
The series RST20i2 is suitable for application in protection class II and is downwards compatible with 3-pin system RST20i3. Therefore it can be ignored from System with protection contact on the 2-pin System - but not vice versa.
