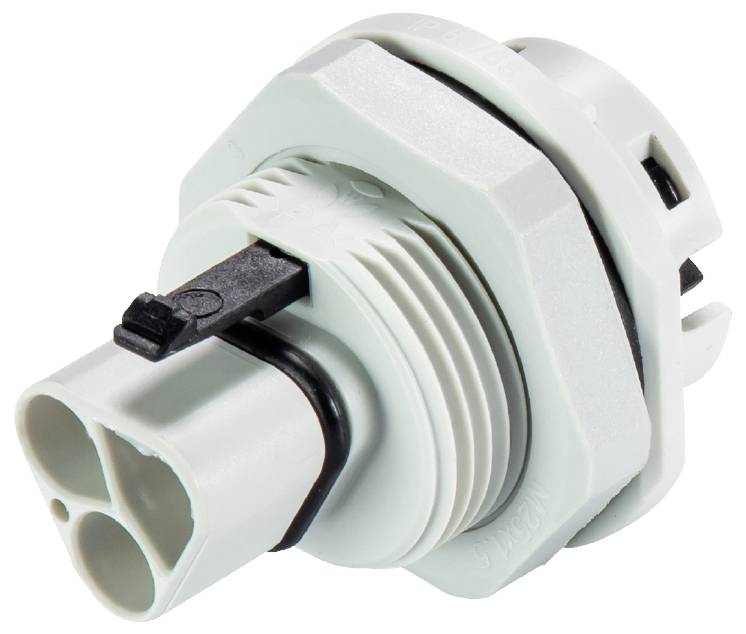

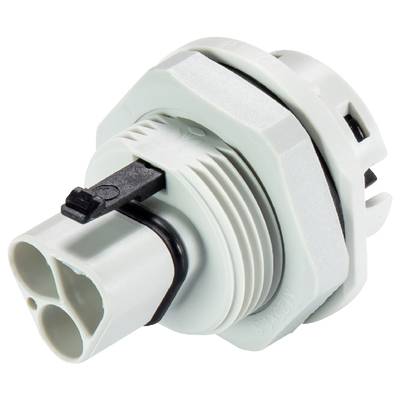

Wieland Electric 96.022.1053.0 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.77
5
6% = € 0.22
€ 3.55
10
8% = € 0.31
€ 3.46
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.77 / piece)
€
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Number of pins
2
IP66
35 mm
Plug
TRUE
35 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
2
44.6 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.8 mOhm
CuZn
M25
IP66
2
L, N
Grey
0.116 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
7035
Description
RST® CLASSIC device connection
Standard
straight
M25
Number of poles: 2
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert light GRAY
This text is machine translated.
Standard
straight
M25
Number of poles: 2
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert light GRAY
This text is machine translated.
