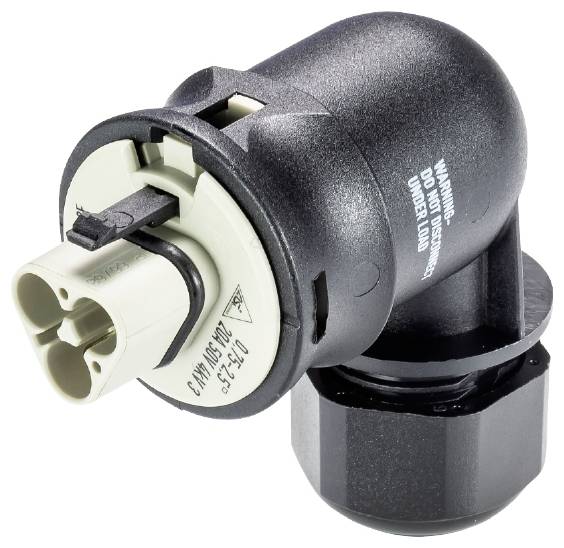

Wieland Electric 96.024.4150.8 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
3
5% = € 0.43
€ 7.54
5
8% = € 0.61
€ 7.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.97 / piece)
€ 7.97
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
angled
- Connection
Screw connection
- Rated voltage
50 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
2
IP66
34.6 mm
Plug
TRUE
62.3 mm
Screw connection
Integrated in plug-in connector
20 A
50 V
TRUE
2
70.5 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
0.55 mOhm
CuZn
IP66
1
1+, 2-
Grey
0.304 kWh
0.75-6 mm²
0.75-6 mm²
100 °C
7032
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284988 Wieland Electric 96.024.4150.8 Connector
Description
RST® CLASSIC connectors
90° angle
Number of poles: 2
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert pebble gray
This text is machine translated.
90° angle
Number of poles: 2
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert pebble gray
