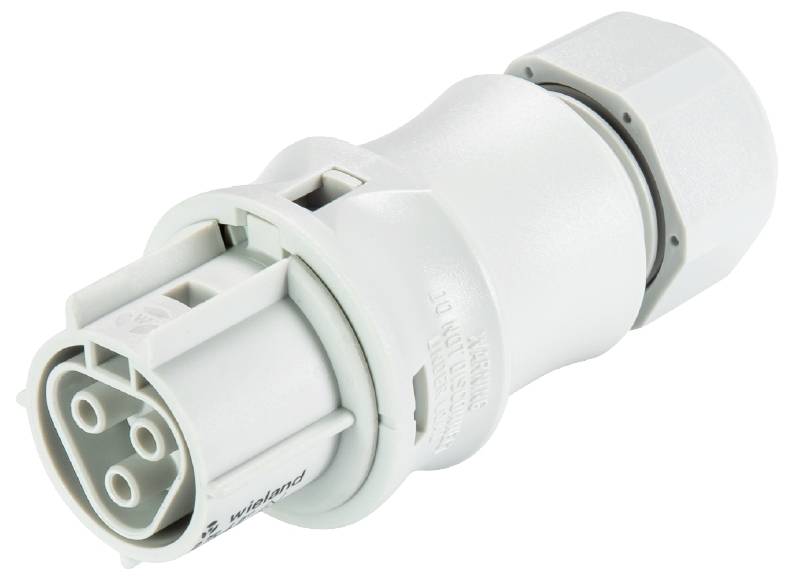

Wieland Electric 96.031.0153.0 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
34.6 mm
Bus
TRUE
34.6 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
TRUE
3
82 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
0.8 mOhm
CuZn
IP66
2
L, N, PE
Grey
0.292 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
7035
Description
RST® CLASSIC connectors
straight
Number of poles: 3
Socket
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert light GRAY
This text is machine translated.
straight
Number of poles: 3
Socket
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert light GRAY
This text is machine translated.
