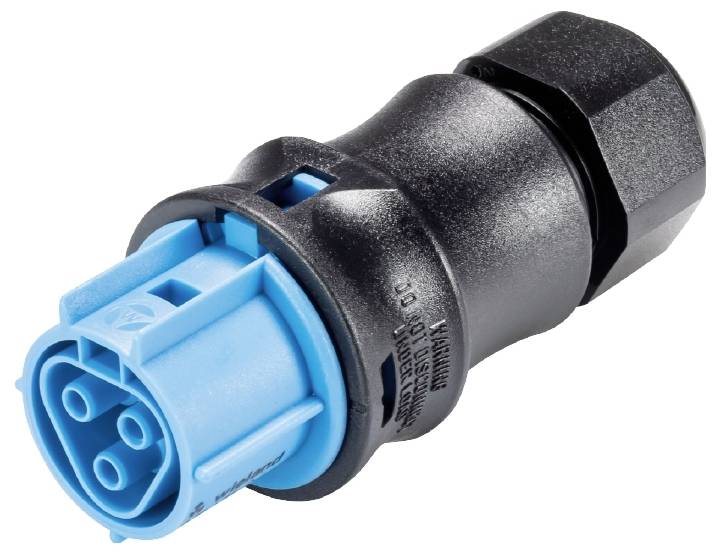

Wieland Electric 96.031.0153.9 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
3
5% = € 0.38
€ 6.75
5
8% = € 0.54
€ 6.59
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
3
IP66
34.6 mm
Bus
TRUE
34.6 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
TRUE
3
82 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
CuZn
IP66
2
1, 2, 3
Blue
0.293 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
5012
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285316 Wieland Electric 96.031.0153.9 Connector
Description
RST® CLASSIC connectors
straight
Number of poles: 3
Socket
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert light blue
This text is machine translated.
straight
Number of poles: 3
Socket
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert light blue
