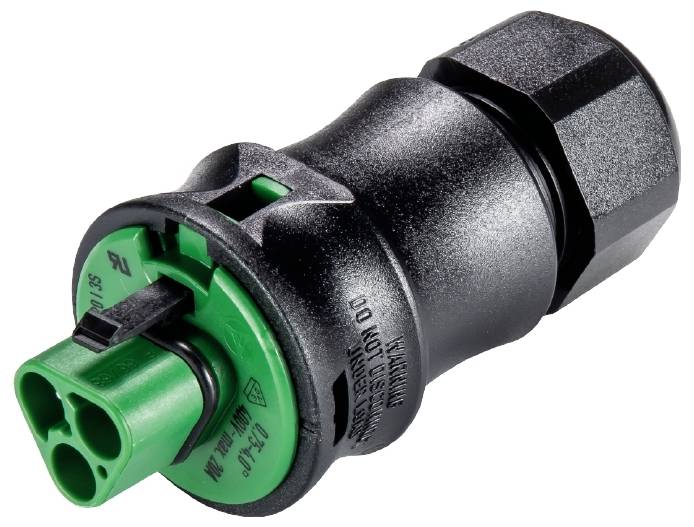

Wieland Electric 96.032.0055.7 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
3
IP66
34.6 mm
Plug
TRUE
34.6 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
TRUE
3
79.1 mm
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
CuZn
IP66
2
1, 2, PE
Green
0.272 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
6002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285068 Wieland Electric 96.032.0055.7 Connector
Description
RST® CLASSIC connectors
straight
Number of poles: 3
Connector
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert leaf green
This text is machine translated.
straight
Number of poles: 3
Connector
Spring-loaded terminal connection type
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert leaf green
This text is machine translated.
