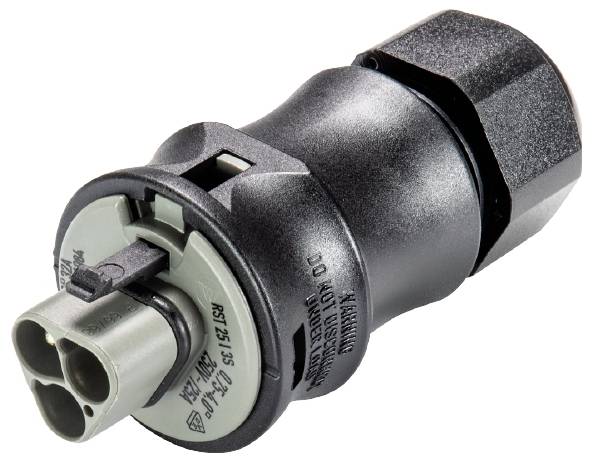

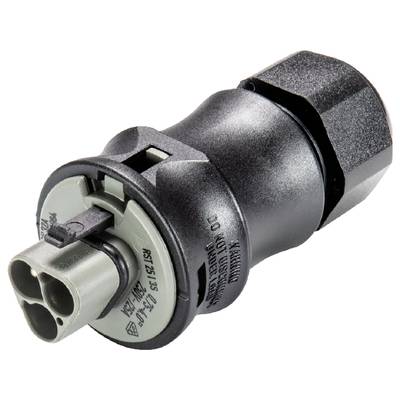

Wieland Electric 96.032.4154.3 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
5% = € 0.43
€ 7.96
5
7% = € 0.60
€ 7.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
25 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
3
IP66
- Contact material
CuZn
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285377 Wieland Electric 96.032.4154.3 Connector
Description
RST® CLASSIC connectors
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 25 A
Cable diameter 10 - 14 mm
Coding color / contact insert concrete gray
This text is machine translated.
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 25 A
Cable diameter 10 - 14 mm
Coding color / contact insert concrete gray
This text is machine translated.
