Wieland Electric 96.032.4551.4 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
20 A
- Cable Ø (max.)
18 mm
- Cable Ø up to
13 mm
- Cable Ø range
13 - 18 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
35.4 mm
Plug
TRUE
35.4 mm
Screw connection
Integrated in plug-in connector
20 A
50 V
TRUE
3
96 mm
Other
13-18 mm
Silver-plated
3
4 kV
0.55 mOhm
CuZn
IP66
1
1, 2, PE
Other
0.347 kWh
0.75-6 mm²
0.75-6 mm²
100 °C
8002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285464 Wieland Electric 96.032.4551.4 Connector

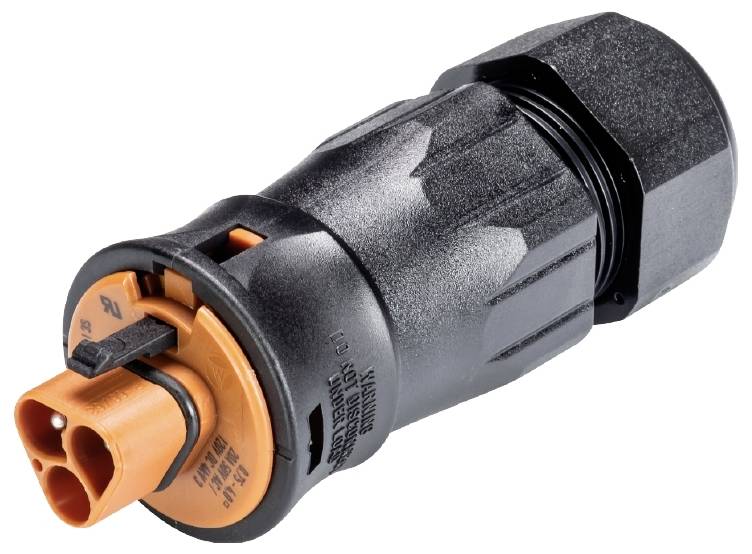

Description
RST® CLASSIC connectors
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 13 - 18 mm
Coding color / contact insert signal brown
This text is machine translated.
straight
Number of poles: 3
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 13 - 18 mm
Coding color / contact insert signal brown
This text is machine translated.
