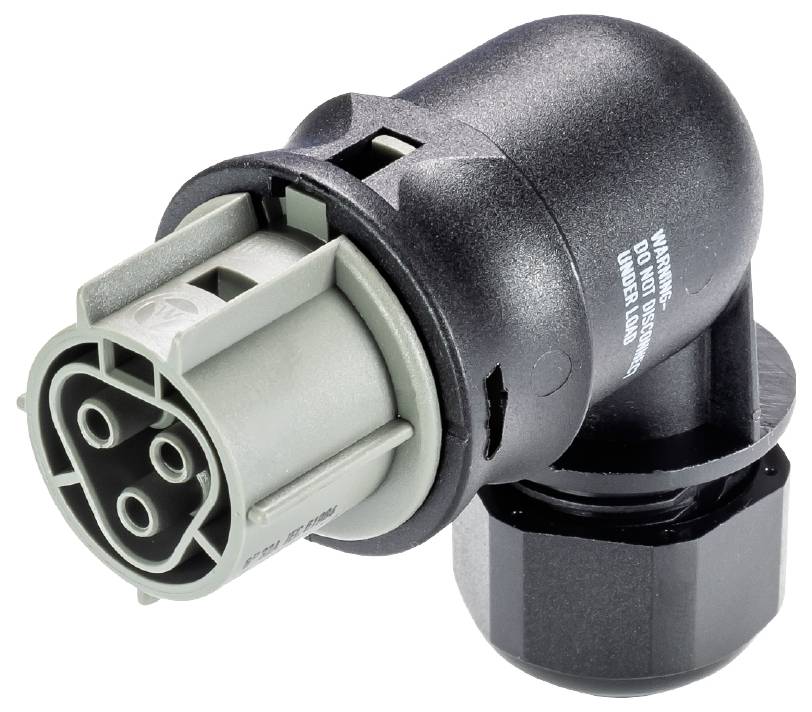

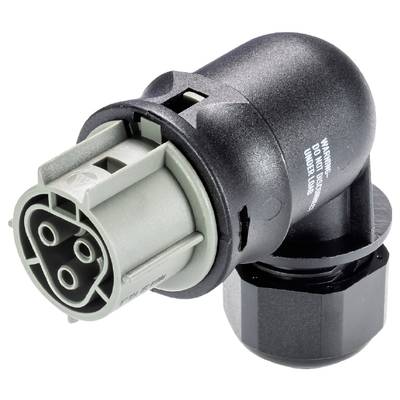

Wieland Electric 96.033.4054.3 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
5% = € 0.43
€ 7.96
5
7% = € 0.60
€ 7.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Type B
Socket
- Connector version
90-degree
- Connection
Screw connection
- Rated voltage
250 V
- Test current
25 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
3
IP66
- System
gesis® CLASSIC
34.6 mm
Bus
TRUE
62.3 mm
Screw connection
Integrated in plug-in connector
25 A
250 V
TRUE
3
73.4 mm
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
0.55 mOhm
CuZn
IP66
1
L, N, PE
Grey
0.326 kWh
0.75-6 mm²
0.75-6 mm²
100 °C
7023
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289274 Wieland Electric 96.033.4054.3 Connector
Description
RST® CLASSIC connectors
90° angle
Number of poles: 3
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 25 A
Cable diameter 6 - 10 mm
Coding color / contact insert concrete gray
This text is machine translated.
90° angle
Number of poles: 3
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 25 A
Cable diameter 6 - 10 mm
Coding color / contact insert concrete gray
