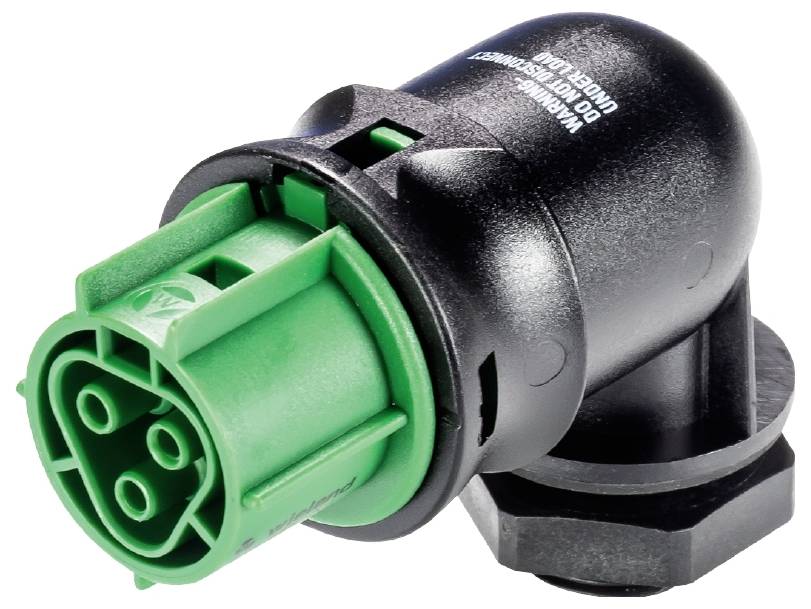

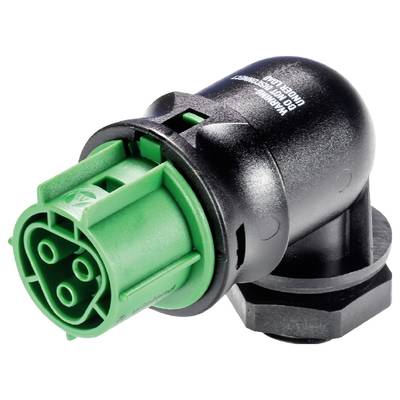

Wieland Electric 96.033.6055.7 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
5% = € 0.43
€ 7.96
5
7% = € 0.60
€ 7.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€
Technical specifications
- Type A
Socket
- Connector version
90-degree
- Connection
Screw connection
IP66
- Number of pins
3
- Test current
20 A
- Rated voltage
250 V
34.6 mm
Bus
TRUE
54.3 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
3
73.4 mm
Polyamide (PA)
Silver-plated
3
Right-angled
4 kV
0.55 mOhm
CuZn
M20
IP66
1
1, 2, PE
Green
0.244 kWh
Black
0.75-6 mm²
0.75-6 mm²
100 °C
6002
- Product type
Appliance connector
Description
RST® CLASSIC device connection
Modular
90° angle
M20
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert leaf green
This text is machine translated.
Modular
90° angle
M20
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Coding color / contact insert leaf green
This text is machine translated.
