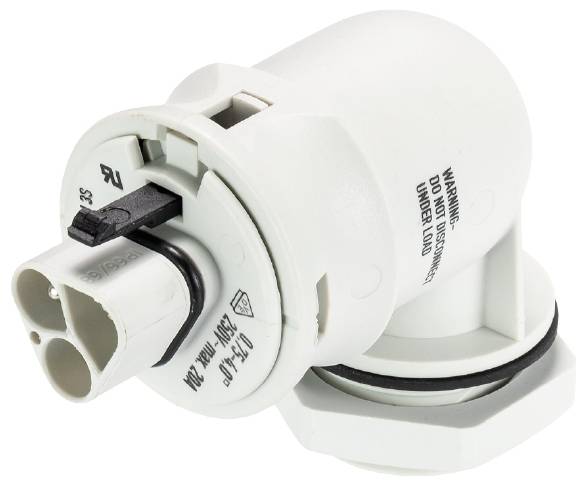

Wieland Electric 96.034.6253.0 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
3
5% = € 0.43
€ 7.54
5
8% = € 0.61
€ 7.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.97 / piece)
€ 7.97
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
90-degree
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Number of pins
3
IP66
34.6 mm
Plug
TRUE
54.3 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
3
70.5 mm
Polyamide (PA)
Silver-plated
3
Right-angled
4 kV
0.55 mOhm
CuZn
M25
IP66
1
L, N, PE
Grey
0.229 kWh
Grey
0.75-6 mm²
0.75-6 mm²
100 °C
7035
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285354 Wieland Electric 96.034.6253.0 Appliance connector
Description
RST® CLASSIC device connection
Modular
90° angle
M25
Number of poles: 3
Plug version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert light GRAY
This text is machine translated.
Modular
90° angle
M25
Number of poles: 3
Plug version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Coding color / contact insert light GRAY
This text is machine translated.
