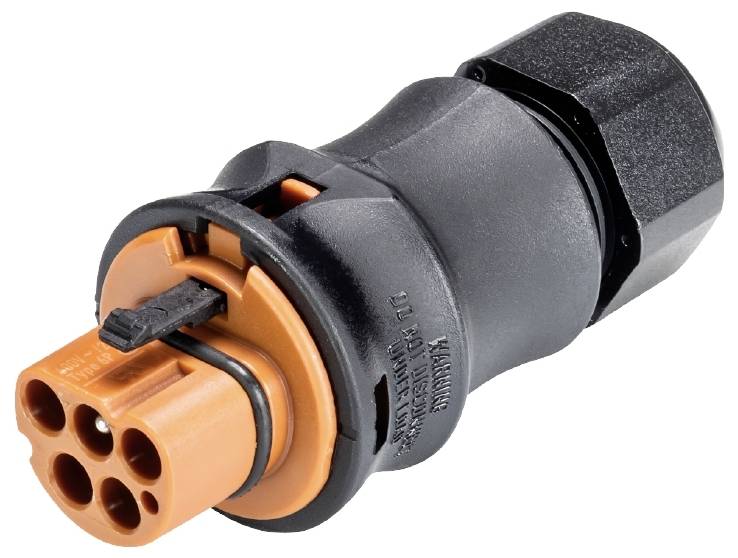

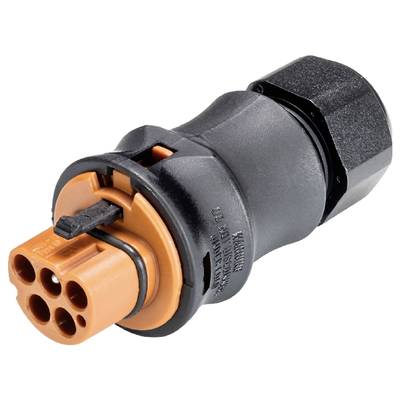

Wieland Electric 96.042.4051.4 Connector RAL 8002 (Signal Brown)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14 days return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Factory colour
RAL 8002 (Signal Brown)
- Connection
Screw connection
- Rated voltage
50 V
- Test current
20 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
4
IP66
- Max. ambient temperature
100 °C
34.6 mm
Plug
TRUE
34.6 mm
Screw connection
Integrated in plug-in connector
20 A
50 V
TRUE
4
78.4 mm
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
0.55 mOhm
CuZn
IP66
1
Other
0.288 kWh
0.75-4 mm²
0.75-4 mm²
100 °C
8002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3285701 Wieland Electric 96.042.4051.4 Connector RAL 8002 (Signal Brown)
Description
RST® CLASSIC connectors
straight
Number of pins: 4
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert signal brown
This text is machine translated.
straight
Number of pins: 4
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert signal brown
This text is machine translated.
