Buy Wieland Electric 96.051.4353.6 Connector

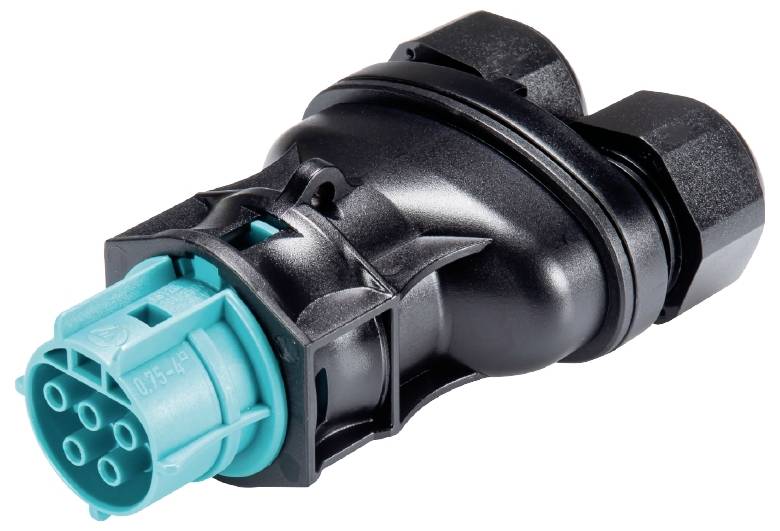

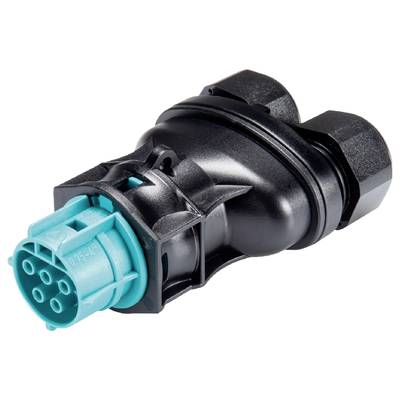

A black and turquoise electric plug adapter with multiple socket outlets, likely for industrial applications.

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€

Report legal concerns

Technical specifications

Type A: Socket

Connection: Screw connection

Cable Ø range: 10 - 14 mm

: IP66

Number of pins: 5

Test current: 20 A

Rated voltage: 250 V

Cable Ø (max.): 14 mm

Cable Ø up to: 10 mm

: 59 mm

: Bus

: TRUE

: 38 mm

: Screw connection

: Integrated in plug-in connector

: 20 A

: 250 V

: TRUE

: 5

: 95.9 mm

: Polyamide (PA)

: 10-14 mm

: Silver-plated

: 3

: 4 kV

: 0.55 mOhm

: CuZn

: IP66

: 1

: L, N, PE, D1, D2

: Blue

: 0.516 kWh

: 0.75-4 mm²

: 0.75-4 mm²

: 100 °C

: 5018

Product type: Connector

Description

RST® CLASSIC connectors
Double connector
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert, turquoise

This text is machine translated.
